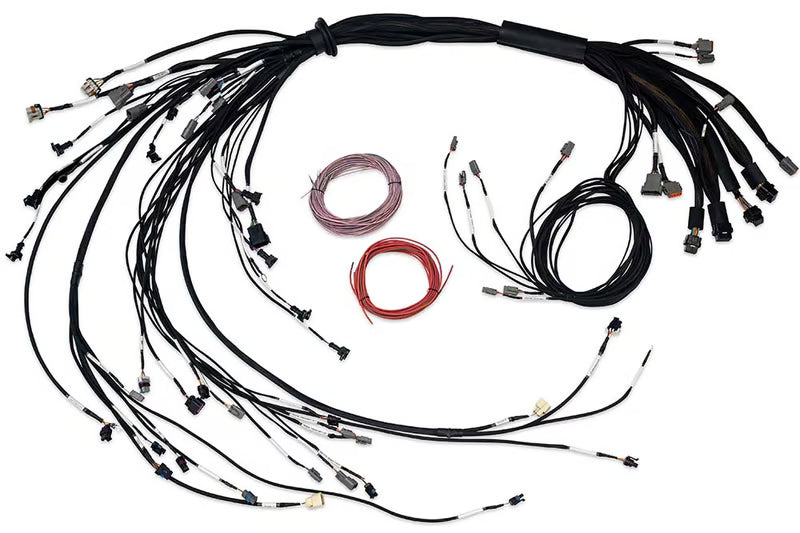

Haltech - Nexus R5 LS Non-DBW Terminated Harness

Haltech - Nexus R5 LS Non-DBW Terminated Harness

$1,995.00 AUD
$1,995.00 AUD
Sale Sold out
Shipping calculated at checkout.

Terminated harness suits LSx engines without DBW, incorporates PDM functionality.
  • EV1 primary injector plugs.
  • Plug and play with the OEM Ignition sub-harness on the engine. (Required)
Includes:
  • 1 x HT-186206 Terminated Harness
  • 1 x Pack of DTM/DT connector and pin set to terminate to sensors, solenoids and other devices
  • 2 x DTP-2 connectors with pre-crimped 12AWG wires to use for fuel pump and thermofan
  • 1 x DT-8 connector with pre-crimped 18AWG wires
  • 1 x 2 pin Bosch alternator adaptor harness
  • 1 x 2 pin Yazaki alternator adaptor harness
  • 1 x 4 pin Delco alternator adapter harness

    Suits: Vehicles equipped with GM LSx engines with cable throttle needing a vehicle rewire with PDM functionality. Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector.

     FEATURES

    • 8 x Primary injectors (EV1)
    • Breakout plug for 8 x Secondary injectors
    • 2 x outputs available for Tertiary injection
    • Single / Dual boost solenoid control
    • Dual wideband sensor control (R5 onboard wideband controller)
    • Flex fuel sensor connection
    • Direct fuel pump control (using 25A-HCO)
    • Direct thermofan control (using 25A-HCO)
    • In-cabin breakout connector for spare inputs and outputs
    • Engine bay breakout connector for spare inputs and outputs (eg transmission control)
    • Breakout connector for PDM outputs (eg Headlights, indicators, wipers, etc)
    • Haltech CAN Bus support (DTM-4)
