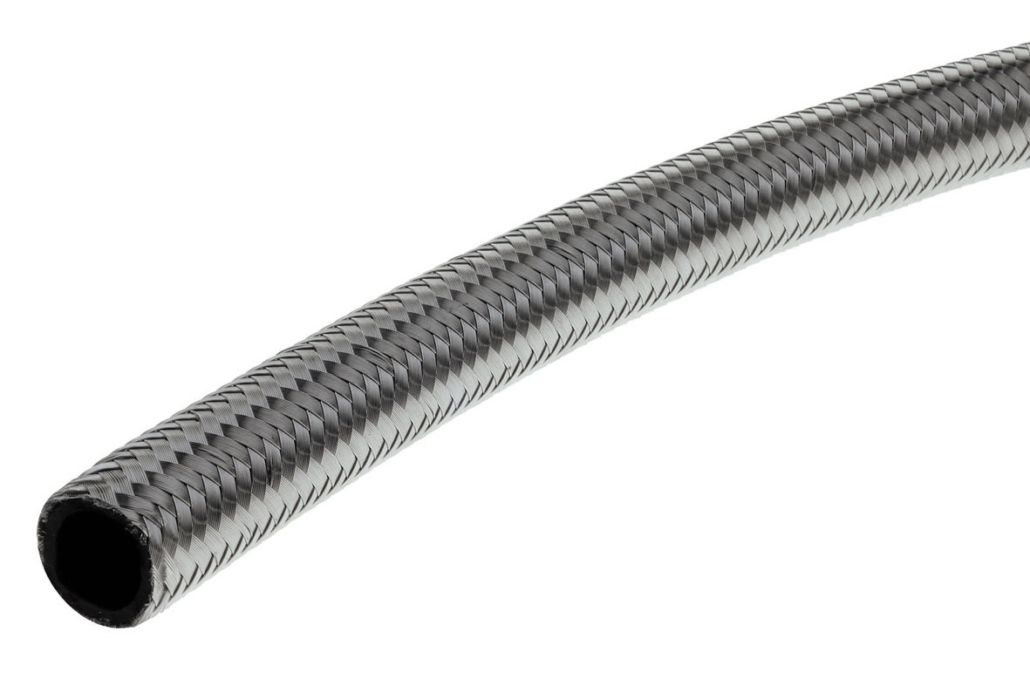

RACEWORKS 100 Series Stainless Braid over Rubber Hose

Description

Raceworks 100 Series Stainless Steel Braided Hose delivers exceptional durability with reinforced Chlorinated Polyethylene (CPE) synthetic rubber core and stainless steel double outer braid. Built to withstand high pressure, extreme temperatures, abrasion and corrosion. Compatible with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant. Operating pressure ranges from 500psi to 1000psi depending on size, with burst pressure capability from 2000psi to 6000psi. Temperature rated -40°C to 150°C. Available in sizes from 7/32″ to 1-1/8″ inside diameter. Backed by 2 year warranty.

Specifications:

• Temperature Range: -40°C to 150°C
• Operating Pressure: From 500psi Through to 1000psi Depending on hose size
• Burst Pressure: From 2000psi Through to 6000psi Depending on hose size
• Fuel type: Ethanol & Methanol Safe
• Inside Diameter: From 7/32″ / 5.5mm Through to 1-1/8″ / 28.5mm
• Outside Diameter: From 7/16″ / 11.1mm Through to 1-13/32″ / 35.8mm


All Raceworks products come with a 2 year warranty.

Raceworks Part Numbers: From RWH-100-04-1M Through to RWH-100-20-10M
