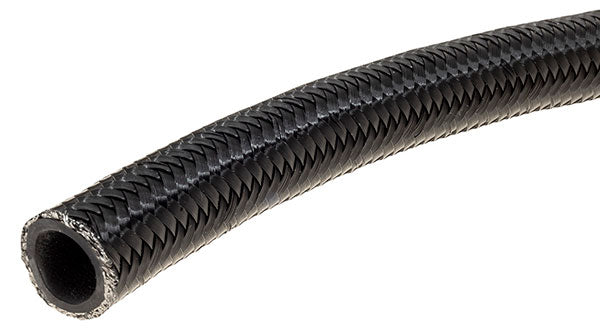

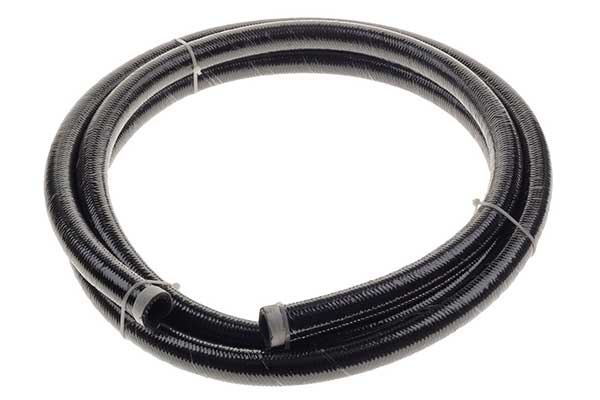

RACEWORKS 140 Series Black Stainless Braid over Rubber Hose

Description

Raceworks 140 Series Black Stainless Steel Braided Hose delivers exceptional durability against high pressure, extreme temperatures, abrasion and corrosion. Built with reinforced Chlorinated Polyethylene (CPE) synthetic rubber core and protective black double outer braid, this hose handles regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant with confidence. Operating from -40°C to 150°C, it withstands pressures from 500psi to 1000psi depending on size, with burst ratings reaching 2000psi to 6000psi. Available in AN-4 through AN-20 configurations, each hose comes backed by a 2-year warranty.

Specifications:

• Temperature Range: -40°C to 150°C
• Sizing from AN-4 Through to AN-20
• Operating Pressure : From 500psi up to 1000psi dependant on hose size
• Burst Pressure: From 2000psi up to 6000psi dependant on hose size
• Fuel type: Ethanol & Methanol Safe
• Inside Diameter: 11/32″  /  8.7mm
• Outside Diameter: 9/16″ / 13.8mm
• Weight per Metre: 196g
• Radius bend: 1.30″ / 33mm

All Raceworks products come with a 2 year warranty.

Raceworks Part Numbers:From RWH-140-04-1M Through to RWH-140-20-10M
