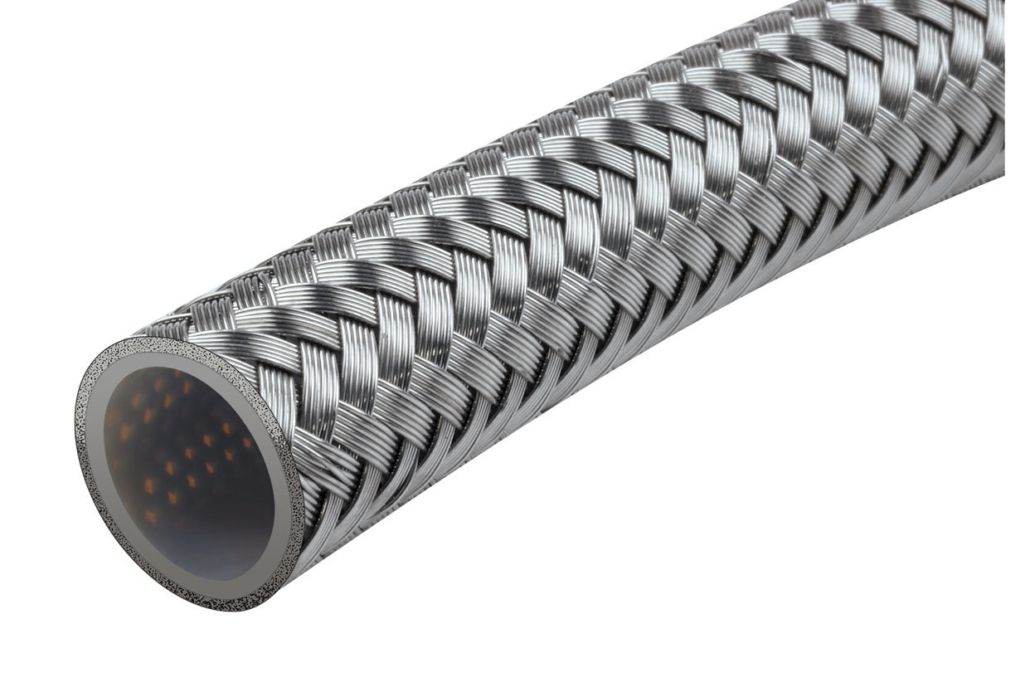

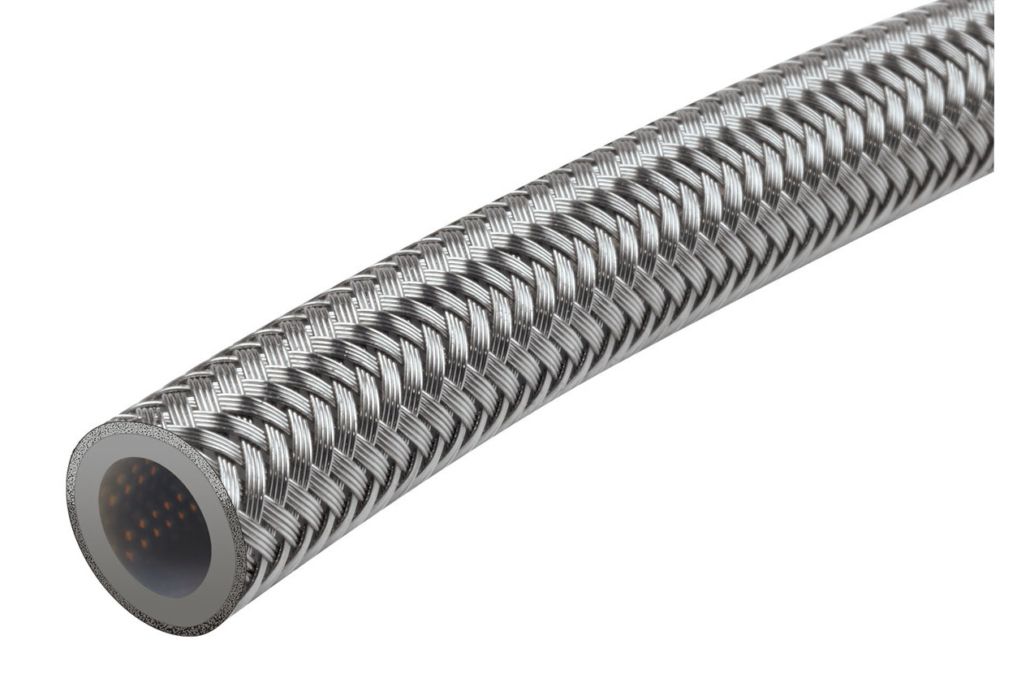

RACEWORKS 200 Series Stainless Braid over PTFE Hose

Description

Raceworks 200 Series Stainless Steel Braided PTFE Hose delivers premium performance for demanding fuel, oil, and nitrous applications. Built with a PTFE inner core compatible with ethanol, methanol, and all standard fluids, this hose features a robust stainless steel braid that resists abrasion and expansion. The sealed construction eliminates fuel odour permeation while maintaining superior pressure and temperature ratings across the Raceworks lineup. Operating from -70°C to 250°C with pressures up to 3000psi, it's engineered for fuel systems requiring maximum durability and reliability. Available in sizes from 1/8″ to 13/16″ inner diameter. Backed by a 2-year warranty.

Specifications:

• Temperature Range: -70°C to 250°C
• Fuel type: Ethanol & Methanol Safe
• Inside Diameter: From 1/8″ / 3.1mm Through to 13/16" / 21mm
• Outside Diameter: From 1/4″ / 6.4mm Through to 63/34" / 25mm
• Operating Pressure: From 500psi To 3000psi Depending on hose size
• Burst Pressure: From 1000psi To 10000psi Depending on hose size


All Raceworks products come with a 2 year warranty.

Raceworks Part Number: From RWH-200-03-1M up to RWH-2000-16-5M
