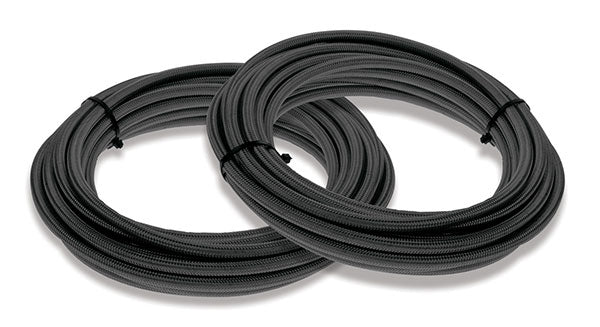

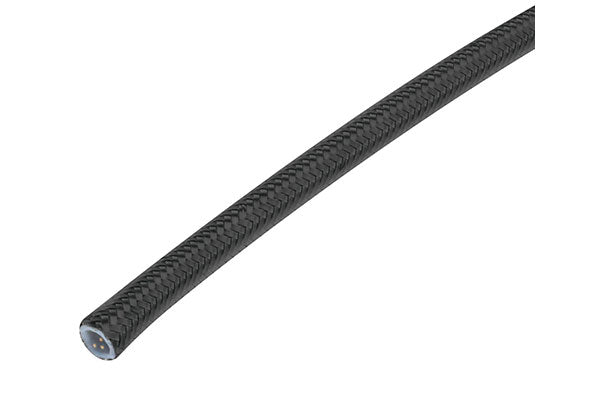

RACEWORKS 230 Series Black Stainless Braid over PTFE Hose

Description

Raceworks 230 Series Black Stainless Braided PTFE Hose delivers premium performance across fuel, oil, nitrous, brake, and clutch applications. Available in sizes from AN-3 x1 Metre to AN-12 x10 Metres, this hose features a robust PTFE inner core wrapped in durable black stainless braid for superior abrasion and expansion resistance. Built to handle extreme conditions with a temperature range of -70°C to 250°C and operating pressures from 1200psi to 3000psi, it eliminates fuel permeation odours and maintains the highest pressure and temperature ratings in the Raceworks lineup. Ethanol and methanol compatible with a 2-year warranty included.

Specifications:

• Temperature Range: -70°C to 250°C
• Operating Pressure : From 1200psi to 3000psi dependant on hose size
• Fuel type: Ethanol & Methanol Safe
• Inside Diameter: 1/8″ / 3.1mm
• Outside Diameter: 1/4″ / 6.4mm
• Burst Pressure: From 4500psi to 10000psi dependant on hose size
• Weight per Metre: 66g
• Radius bend: 0.95″ / 24mm

All Raceworks products come with a 2 year warranty.

Raceworks Part Numbers: From RWH-230-03-1M Through to RWH-230-12-10M
