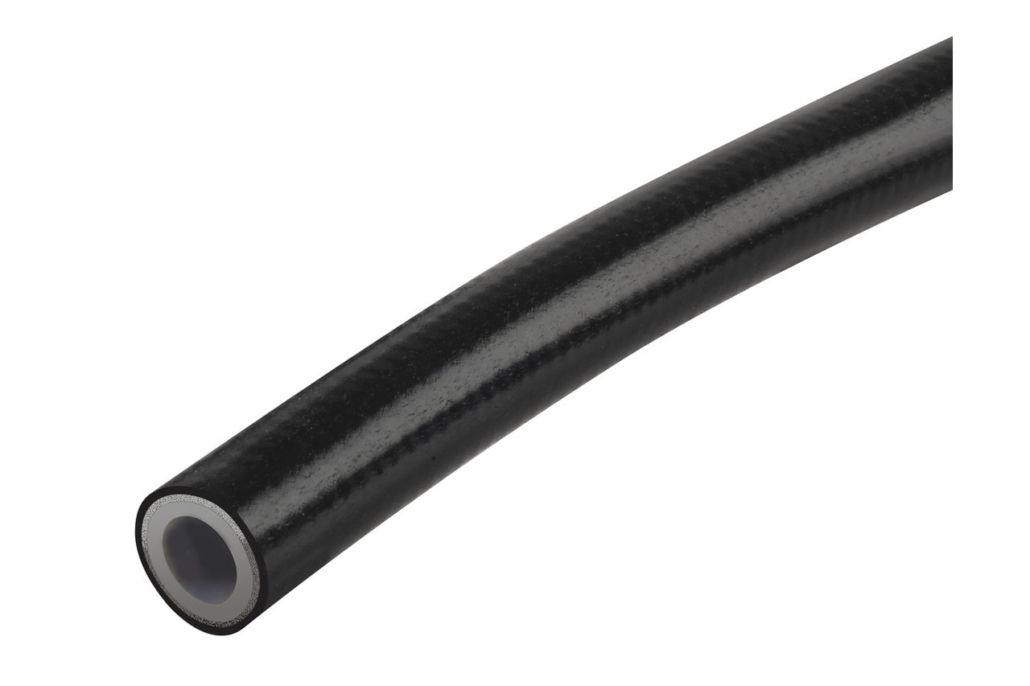

RACEWORKS 260 Series Black PVC Covered Stainless Braid over PTFE Hose

DESCRIPTION

The Raceworks 260 Series PTFE Braided Hose delivers reliable fluid transfer with a PTFE core tube that handles all fuels, oils, nitrous, brake and clutch fluids. Protected by stainless steel reinforcement and a Black PVC outer jacket, it resists abrasion, expansion and wear. Purpose-built for brake and clutch applications with confidence-backed 2 year warranty coverage. Size: AN-3 Operating Pressure: 3000psi Burst Pressure: 10000psi Inside Diameter: 9/64" (3.6mm) Outside Diameter: 9/3.2" (7.35mm) Bend Radius: 1.0" (26mm) Temperature Range: -70°C to 250°C Ethanol & Methanol Safe Custom lengths exceeding 10M available upon request. Contact your Raceworks Dealer to arrange.

Size : AN-3

Operating Pressure: 3000psi

Burst Pressure : 10000psi

Inside Dia Inch : 9/64"

Inside Dia mm : 3.6mm

Outside Dia Inch : 9/3.2"

Outside Dia mm : 7.35mm

Bend Radius (Inch) : 1.0"

Bend Radius (mm) : 26mm

Long lengths (greater than 10M) can be specially ordered. Please enquire with your Raceworks Dealer.

Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe
