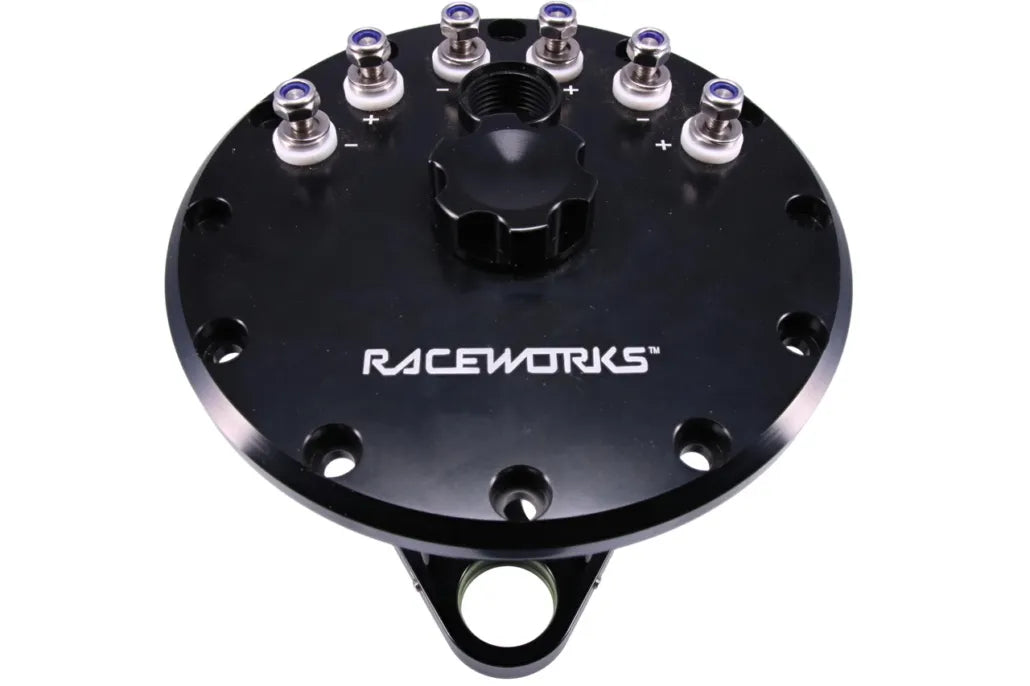

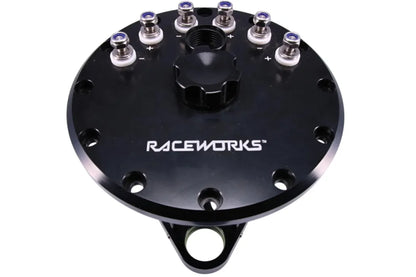

Raceworks Fuel Cell Single/Twin/Triple Fuel Pump Hanger With Filler

DESCRIPTION

Raceworks Fuel Cell Single/Twin/Triple Fuel Pump Hanger With Filler. V2 model with 12x140mm bolt pattern. Suits 39-40mm pumps.



Anodized black, this triple fuel pump hanger can be fitted with one, two or three pumps, and has triple stainless electrical terminals allowing the pumps to be staged separately. E85 ready with teflon seals and intank hose and viton o-rings.

These hangers suit the new V2 fuel cells but are also ideal for retrofitting an EFI fuel pump into older steel tank vehicles, or integrating a high flow pump setup into a custom tank. See the linked items for steel or alloy weld on rings for mounting, fuel pumps, fittings and hose. Adjustable height – suits tank depth of tbc or deeper with longer hose. Filler cap included. O-Ring in hanger base. Single AN-10 O-Ring Port. O-ring seal to tank / mounting ring. This model suits 39-40mm pumps from Walbro / TI Automotive such as the GSS34x, GSS35x, 460, 525 etc.

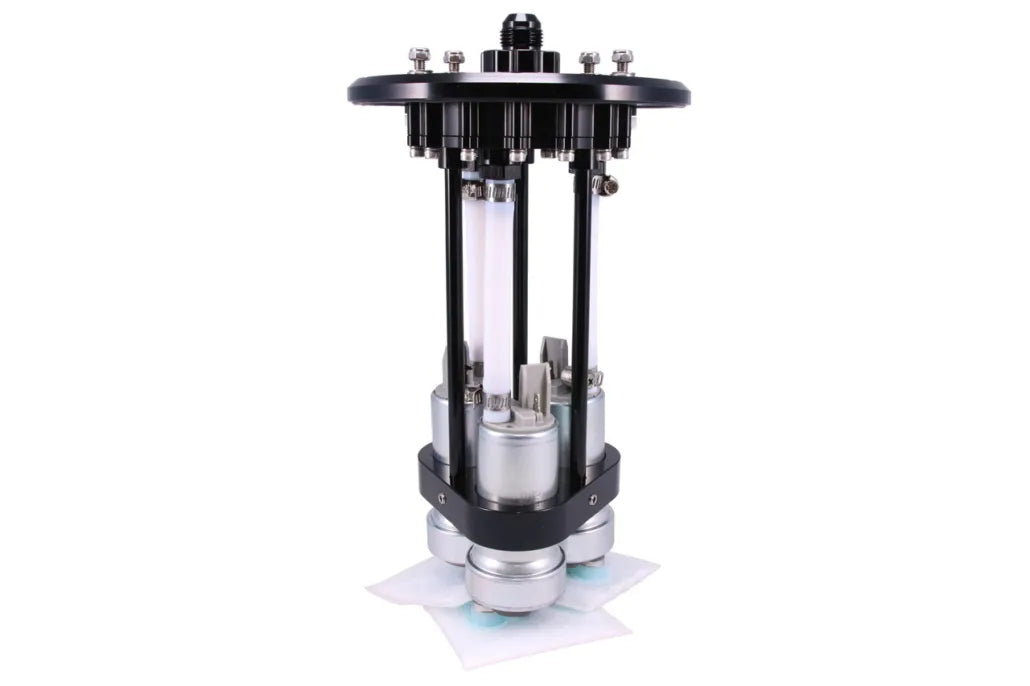

PLEASE NOTE: Fuel pumps pictured are not included

Raceworks fuel pump brackets deliver precision engineering and professional aesthetics for single, twin, or triple pump configurations. Crafted from hardcoat anodised precision alloy, these brackets mount and insulate 39mm and 38mm pumps with secure, reliable performance. The V2 model features the updated 12x140mm filler bolt pattern, designed to accommodate larger accessories like the ALY-195BK Triple Pump Hanger. This upgrade provides enhanced compatibility across the Raceworks fuel cell range. V1 accessories integrate seamlessly with V2 fuel cells using the ALY-104BK adapter plate—note that V2 accessories are not compatible with V1 fuel cells. Built for durability and backed by Raceworks' comprehensive 2-year warranty, these brackets represent a premium solution for fuel system installations requiring flexibility, performance, and longevity. Manufacturer Part Number: ALY-195BK
