Please note : ALY270BK does not come with a filler, you will need ALY-278BK or ALY-195BK
Description

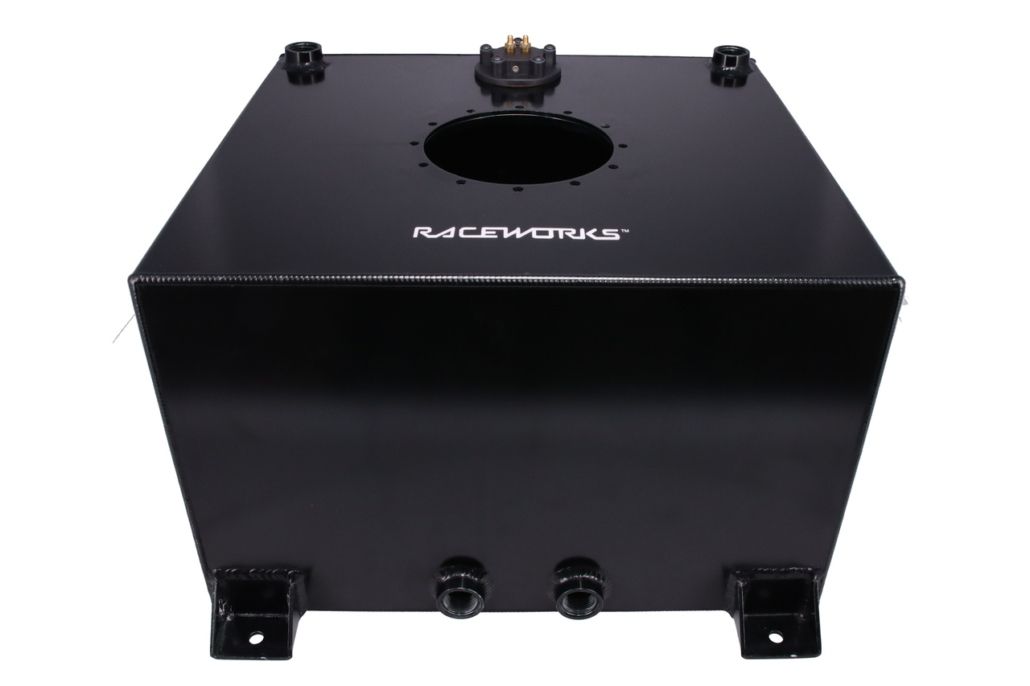

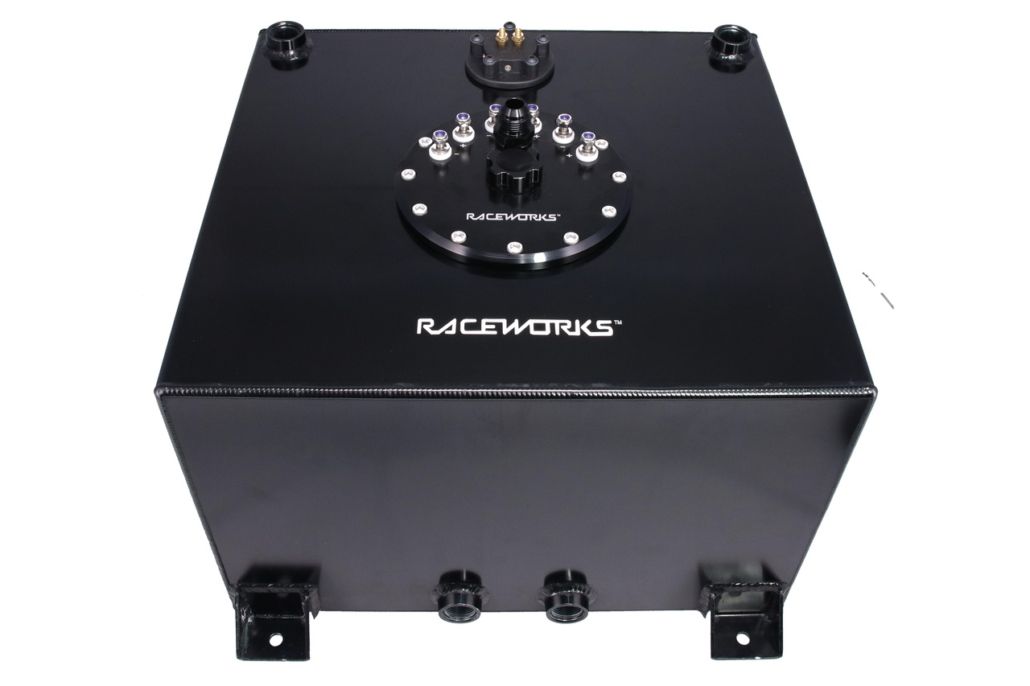

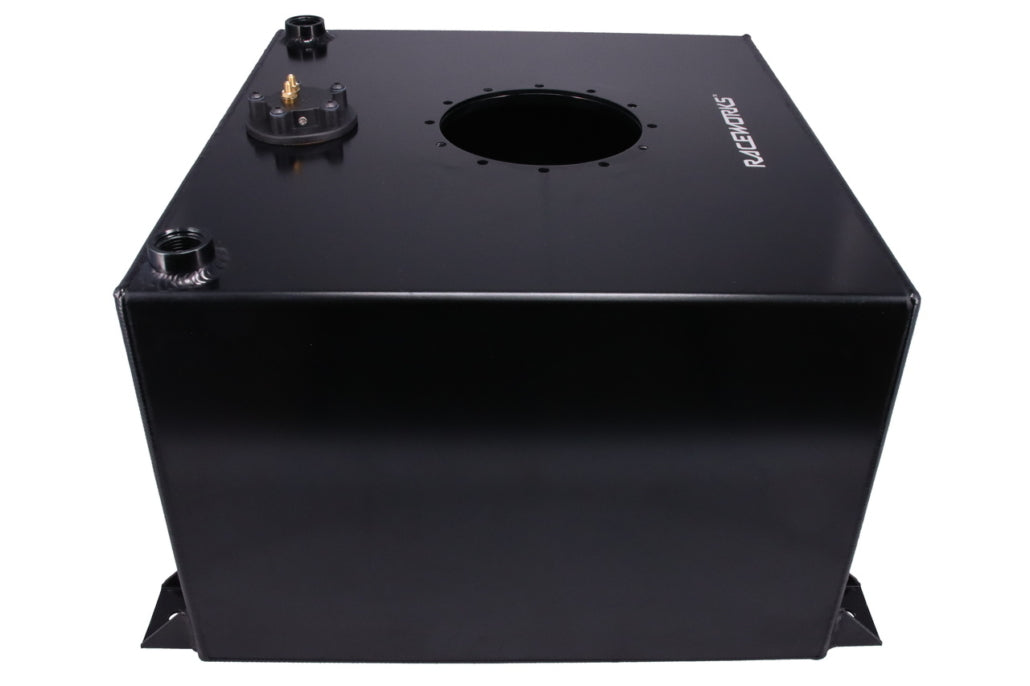

Raceworks Gen2 Fuel Cell Flat Bottom With Internal Baffles 10 Gallon (38L). Raceworks Fuel Cells are engineered to meet extreme racing and performance demands. Each cell is seamlessly robot welded from 5052 aluminium and features aluminium internal baffles to prevent fuel slosh and starvation during aggressive lateral loads. All cells include a 0-90 Ohm E85-safe fuel sender and are anodised black inside and out for superior corrosion resistance. The Gen2 design incorporates a 12x140mm filler bolt pattern to accommodate larger accessories like the ALY-195BK Triple Pump Hanger. Specifications: 38L capacity, flat bottom design, dimensions 410mm W × 380mm D × 260mm H, four AN-10 ports. Backed by a 2-year warranty. Part number: ALY-270BK. Note: Filler not included; requires ALY-278BK or ALY-195BK.Please note : ALY270BK does not come with a filler, you will need ALY-278BK or ALY-195BK
Gen1 Accessories can be used with a ALY-104BK adapter plate to allow them to bolt to the Gen2 Raceworks Fuel Cell range. Gen2 accessories do not fit a Gen1 fuel cell.
Specifications:
- Volume: 38L (10 Gallons)
- Type: Flat Bottom
- Dimensions: Width 410mm, Depth 380mm, Height: 260mm
- Ports: 4x AN-10
All Raceworks products come with a 2 year warranty.
Raceworks Part Number: ALY-270BK
