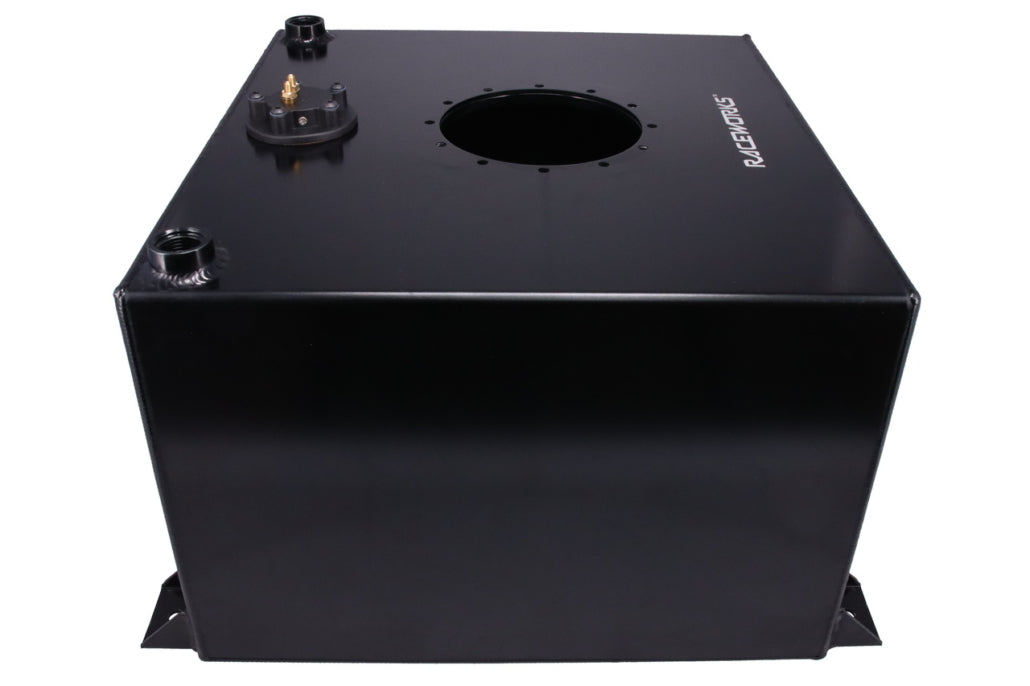

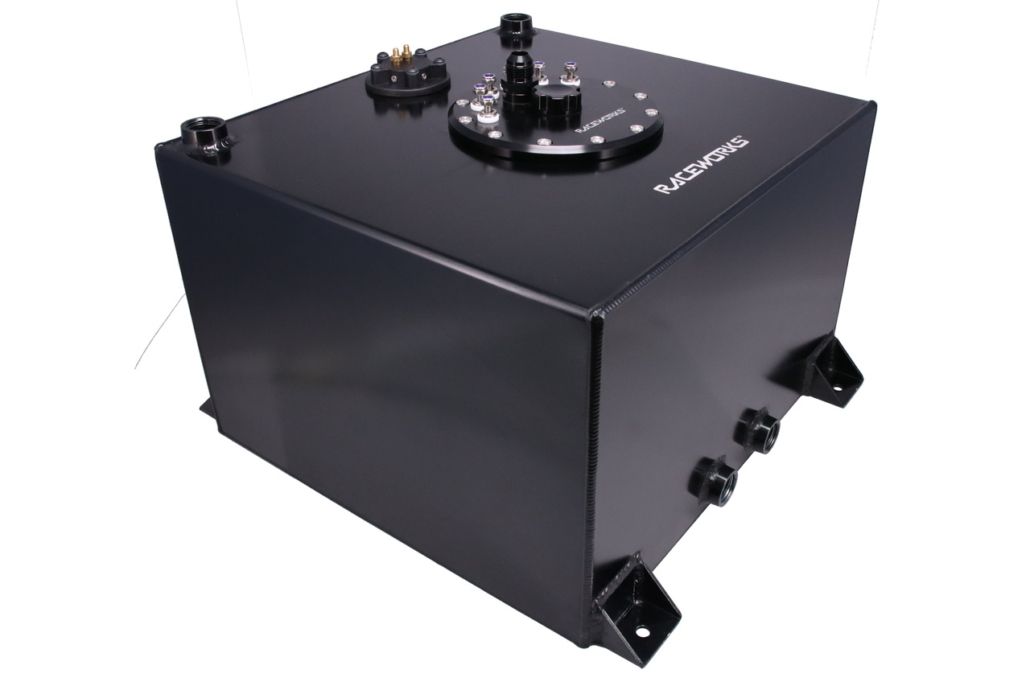

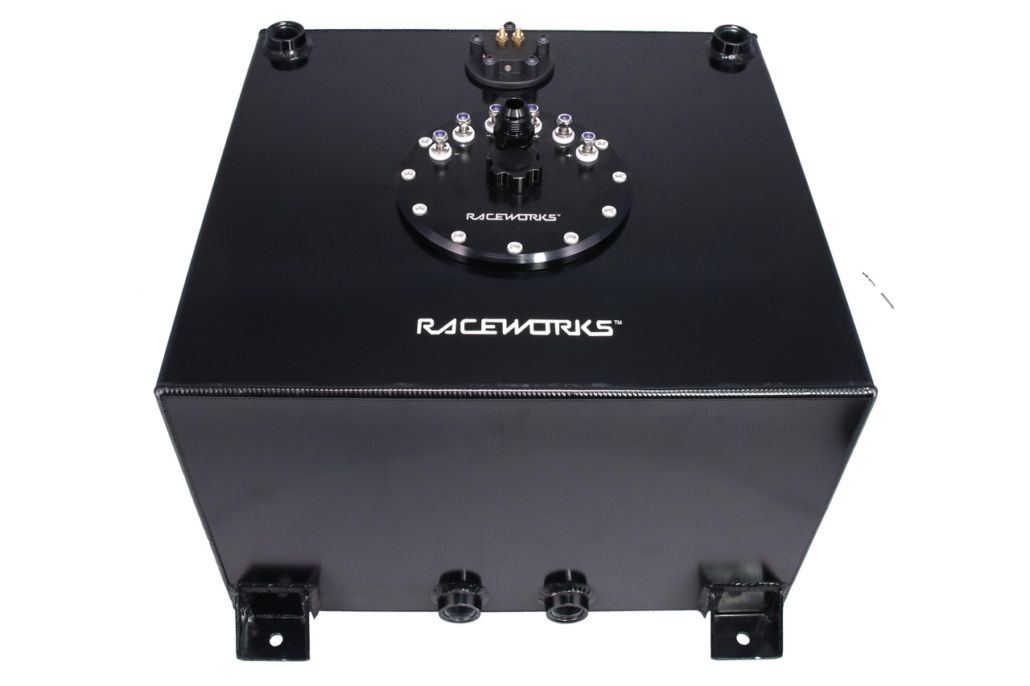

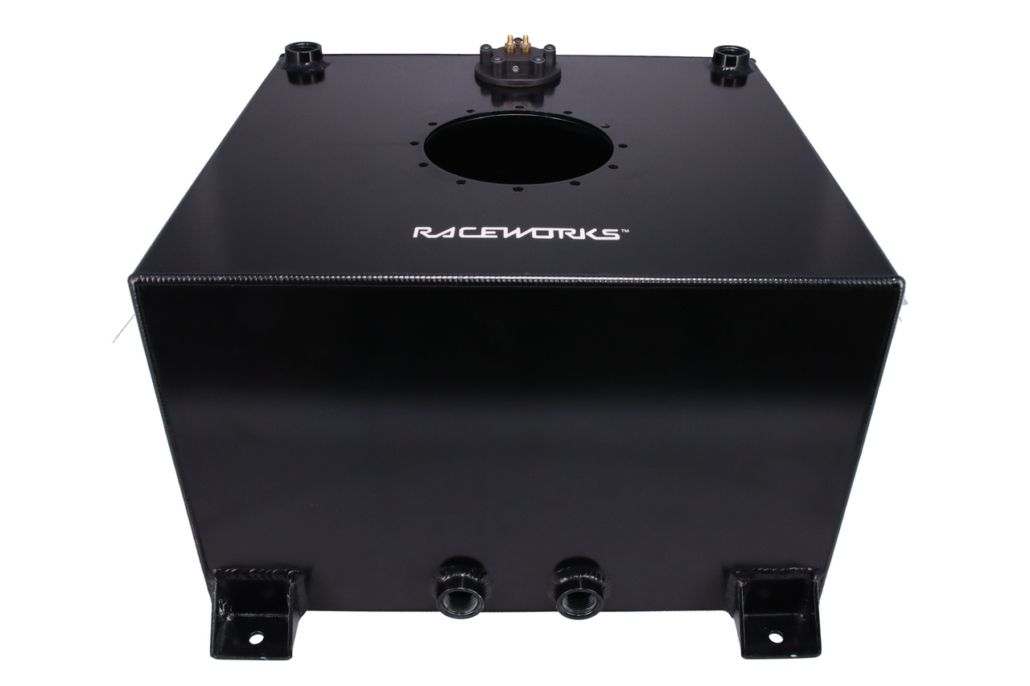

Raceworks Gen2 Fuel Cell Flat Bottom With Internal Baffles 15 Gallon (57L)

Description

The Raceworks Gen2 Fuel Cell Flat Bottom delivers 57 litres of reliable fuel storage engineered for extreme racing conditions. Built from seamlessly robot-welded 5052 aluminium with internal baffles to eliminate fuel slosh and starvation during aggressive cornering and lateral loads. Features a 0-90 Ohm E85-safe fuel sender, black anodised finish for superior corrosion resistance, and four AN-10 ports for flexible fuel system integration. The updated 12x140mm filler bolt pattern accommodates modern high-flow accessories including triple pump hangers. Compatible with Gen2 Raceworks accessories, or use the ALY-104BK adapter plate for Gen1 compatibility. Backed by a 2-year warranty.

NOTE: Does not come with a filler

Specifications:

• Volume: 57L (15 Gallons)
• Type: Flat Bottom
• Dimensions: Width 510mm, Depth 460mm (535mm with feet), Height: 260mm
• Ports: 4x AN-10

NOTE: Does not come with a filler

Raceworks Part Number: ALY-272BK
