Please note : ALY274BK does not come with a filler, you will need ALY-278BK or ALY-195BK
Description

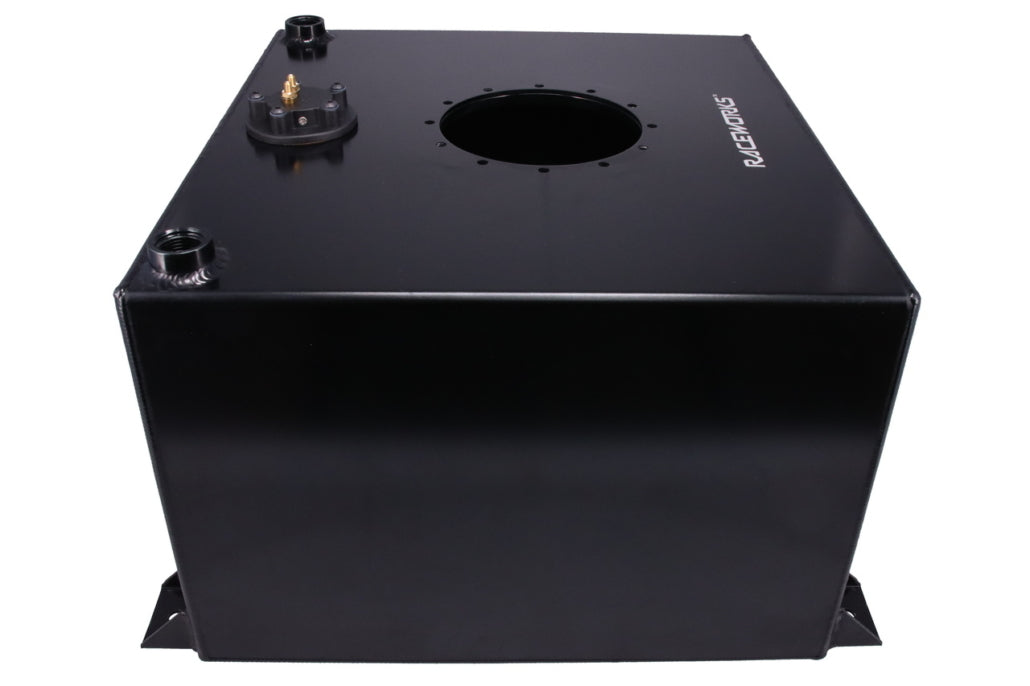

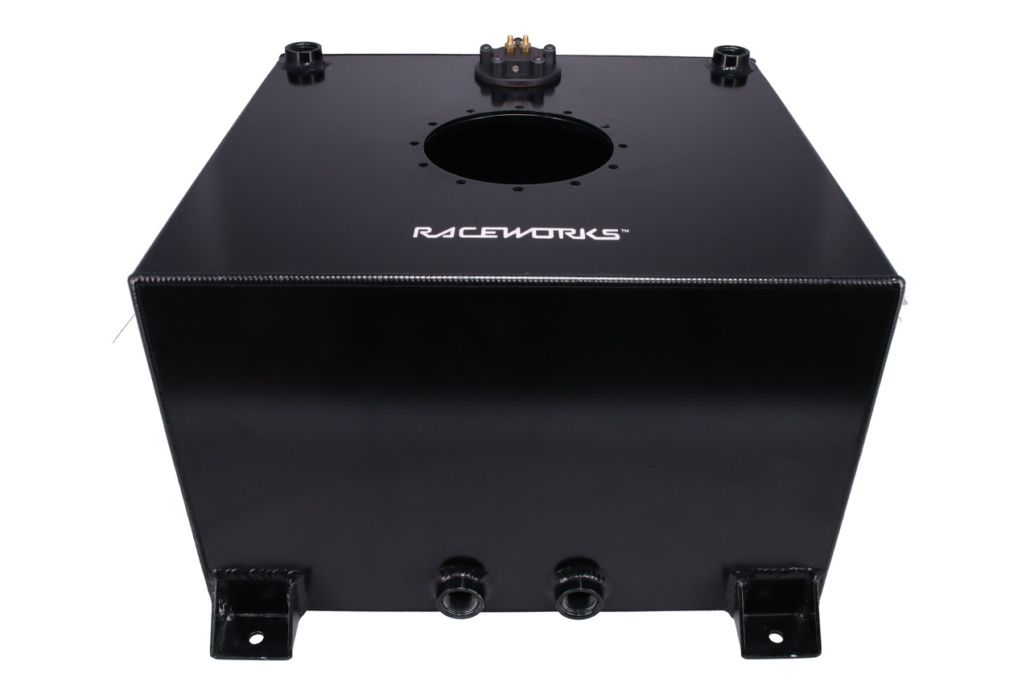

Raceworks Gen2 Fuel Cell Flat Bottom With Internal Baffles 20 Gallon (76L). Built for extreme racing and performance, this fuel cell is seamlessly robot welded from 5052 aluminium with aluminium internal baffles to prevent fuel slosh and starvation during aggressive cornering and lateral loads. Features a 0-90 Ohm E85-safe fuel sender and black anodised finish for superior corrosion resistance. The flat bottom design delivers reliable fuel delivery when you need it most on the track. Dimensions: 610mm W × 510mm D × 260mm H. Four AN-10 ports. Backed by a 2-year warranty. Part Number: ALY-274BK. Note: Filler bolt not included—requires ALY-278BK or ALY-195BK.Please note : ALY274BK does not come with a filler, you will need ALY-278BK or ALY-195BK

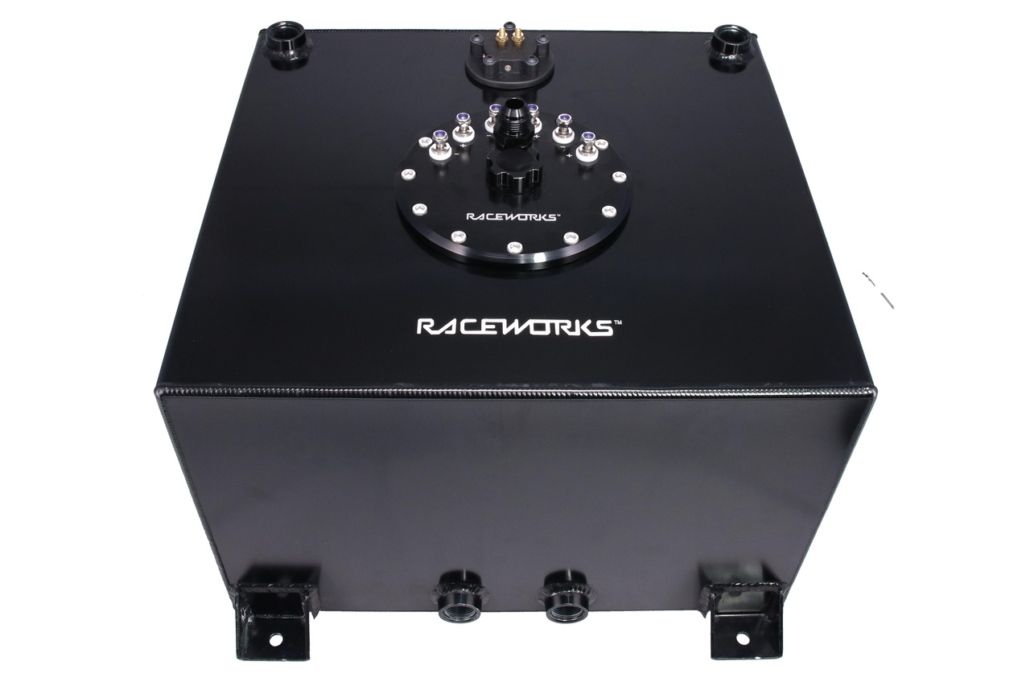

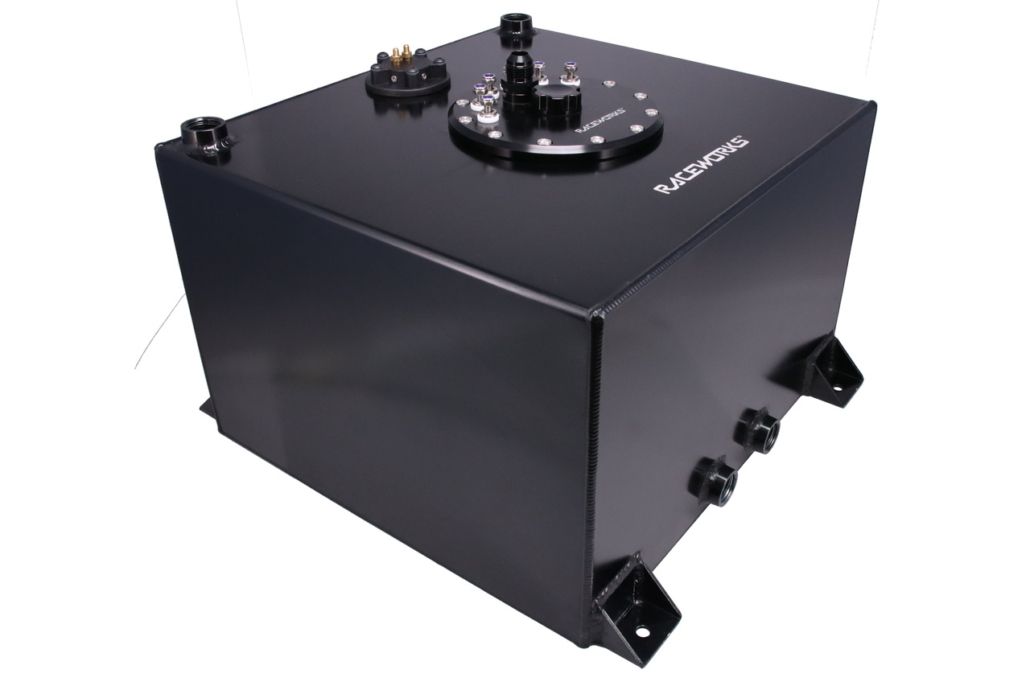

Raceworks Gen2 Fuel Cells and Accessories such as this item now have a 12x140mm filler bolt pattern (vs the older 12×120.5mm bolt pattern). This is to accommodate larger accessories such as the ALY-195BK Triple Pump Hanger.
Gen1 Accessories can be used with a ALY-104BK adapter plate to allow them to bolt to the Gen2 Raceworks Fuel Cell range. Gen2 accessories do not fit a Gen1 fuel cell.
Specifications:
- Volume: 76L (20 Gallons)
- Type: Flat Bottom
- Dimensions: Width 610mm, Depth 510mm, Height: 260mm
- Ports: 4x AN-10
All Raceworks products come with a 2 year warranty.
Raceworks Part Number: ALY-274BK
