Raceworks Gen2 Fuel Cell Single & Twin Pump Hanger Suits 39-40mm Pumps

Description

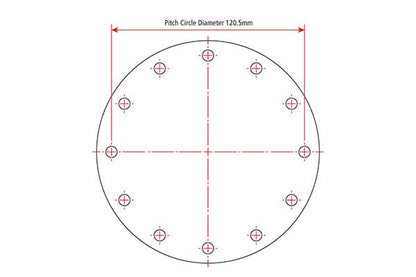

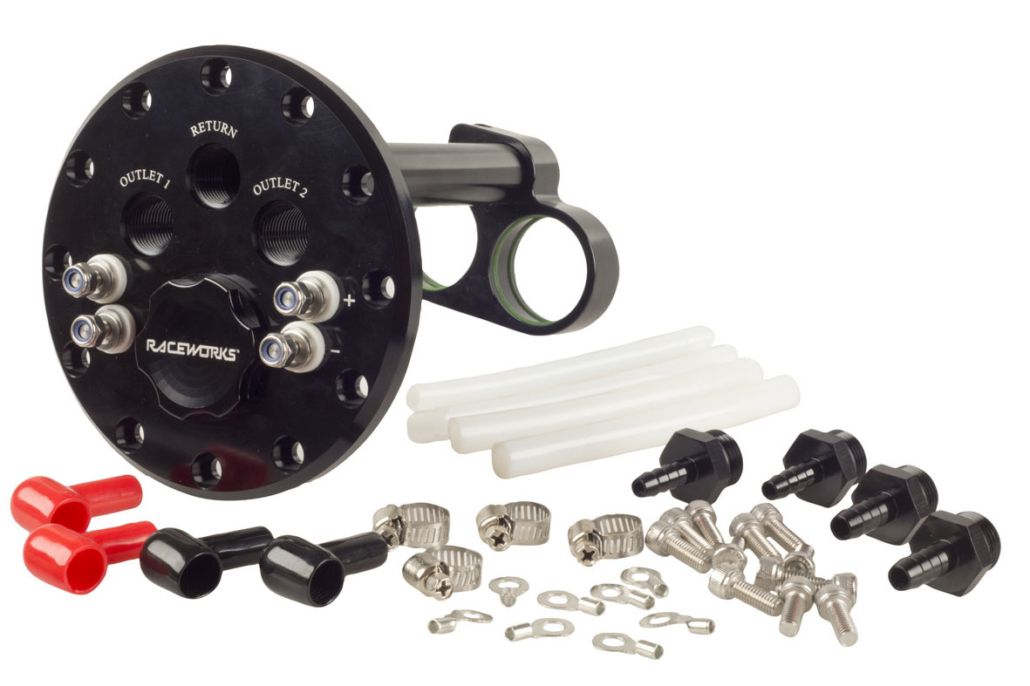

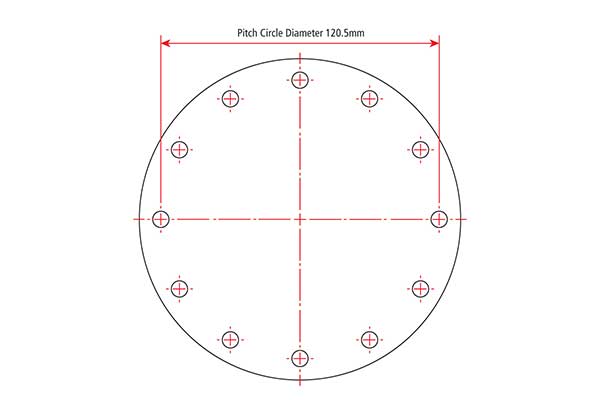

Raceworks Gen2 Fuel Cell Single & Twin Pump Hanger Suits 39-40mm Pumps. Adjustable pump height. Gen2 model with larger 12x140mm bolt pattern. Weld ring also available for installation into steel or alloy tanks. Anodized black, this alloy dual fuel pump hanger can be fitted with one or two pumps, and has dual stainless electrical terminals allowing the pumps to be staged separately. E85 ready with teflon seals and viton o-rings. AN -8 O-Ring Ports. O-ring seal to tank / mounting ring. These hangers are ideal for retrofitting an EFI fuel pump into older steel or plastic tank carby vehicles. Adjustable height suits tank depth of 180mm to 280mm or deeper with longer hose. 41mm filler cap. O-Ring in hanger base, use the fuel cell mounting ring without o-ring. This model suits 39-40mm pumps from Walbro / TI Automotive such as the GSS34x, GSS35x, 460, 525 etc. Engineered from precision alloy and hardcoat anodised, Raceworks fuel pump brackets are designed to attractively mount and insulate a variety of fuel pumps. The range includes brackets for single or twin-mount configuration of 39mm and 38mm pumps to enhance your fuel system installation. All Raceworks products come with a 2 year warranty. Raceworks Part Number: ALY-331BK
