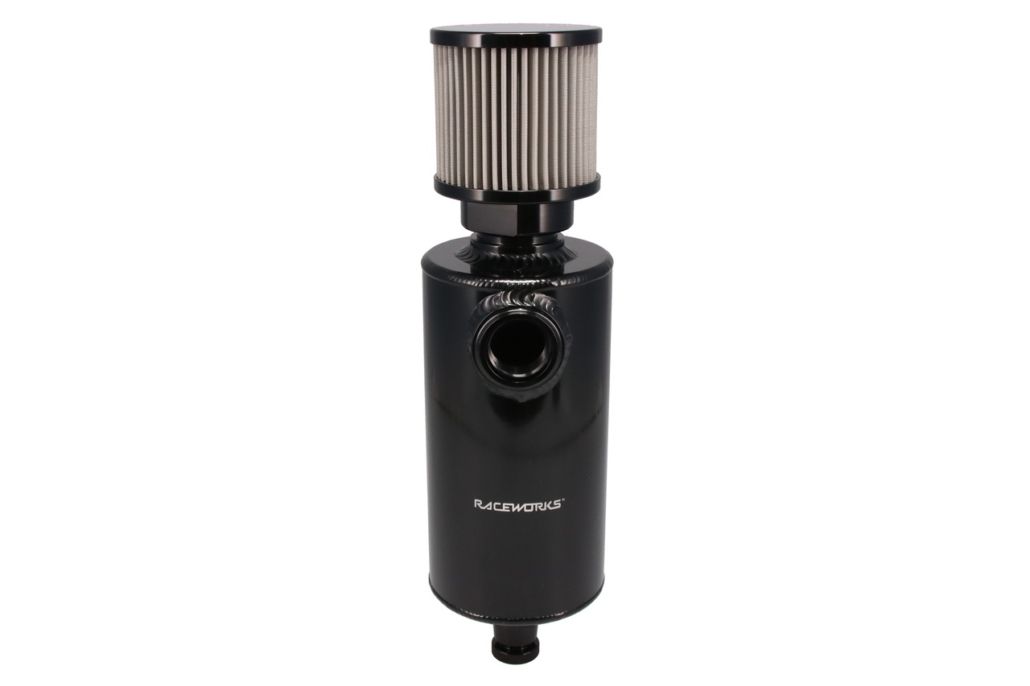

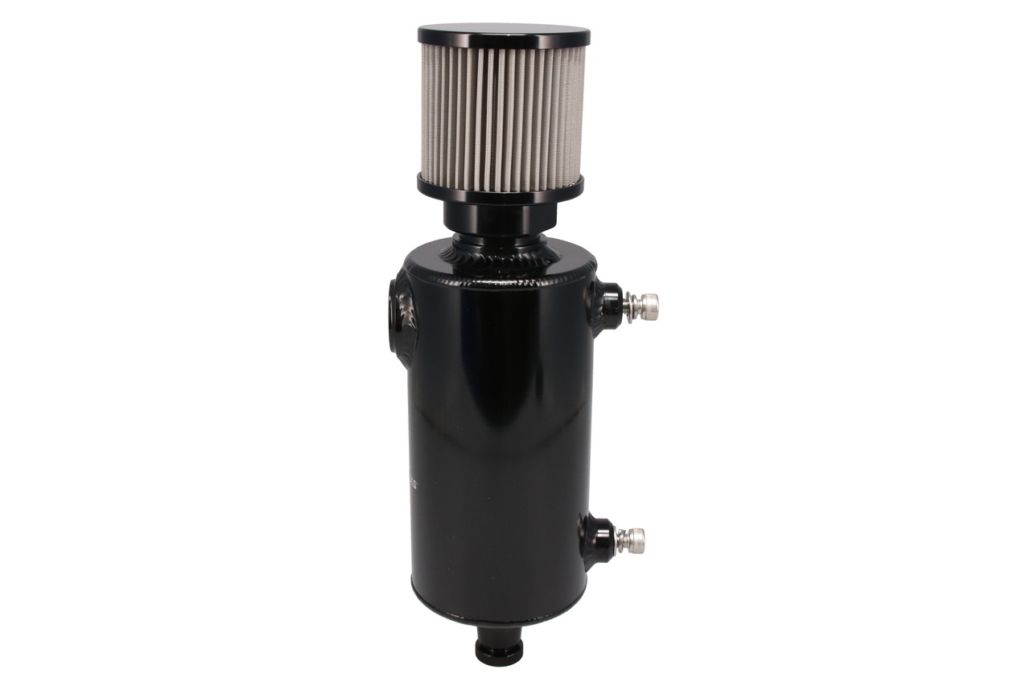

Raceworks Round Catch Can AN-12 External Breather 1L – Black

Description

Raceworks Round Catch Can AN-12 External Breather 1L – Black. An oil catch can or breather tank is an essential step in removing PCV oil before it enters the combustion chamber, and must be baffled while providing unrestricted flow to maintain efficiency and prevent intake carbon build-up. Raceworks Catch Cans have been engineered to perform under the most extreme street and track conditions, featuring robot-welded 5052 aluminium construction for durability and reliability. Each unit is equipped with a tapered banjo-style drain plug for spill-free oil retrieval. The drain plug can be completely replaced with any suitable AN or barb style adapter if you require a permanent oil-return solution. Key Specifications: Tank Capacity – 1.0L Usable Volume – 0.75L Connections – AN-12 ORB inlet, AN-10 drain with tap, AN-20 breather outlet Height (including breather and drain tap) – 316mm Tank body height – 175mm Tank body diameter – 90mm Twin M8x1.25 mounting bosses on rear Includes mounting hardware Raceworks Part Number: ALY-245BK All Raceworks products come with a 2 year warranty.

Specifications:

Tank Capacity – 1.0L
Usable Volume – 0.75L
AN-12 ORB, AN-10 Drain with Tap, AN-20 Breather, Baffled
Height including breather and drain tap – 316mm
Height of tank body – 175mm
Tank Body Diameter – 90mm
Contains twin M8x1.25 bosses on the rear for mounting
Includes mounting hardware

Raceworks Part Number: ALY-245BK
