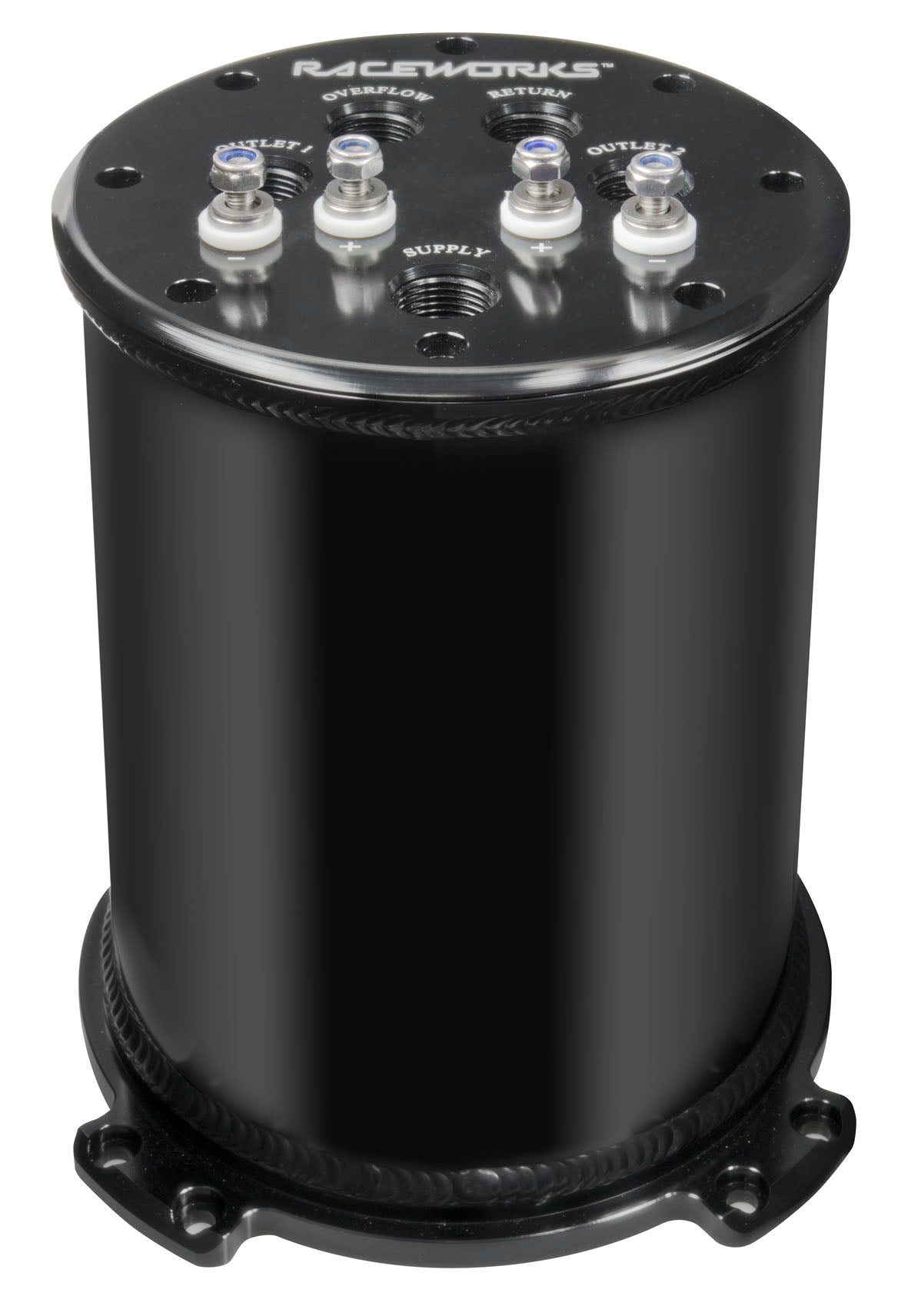

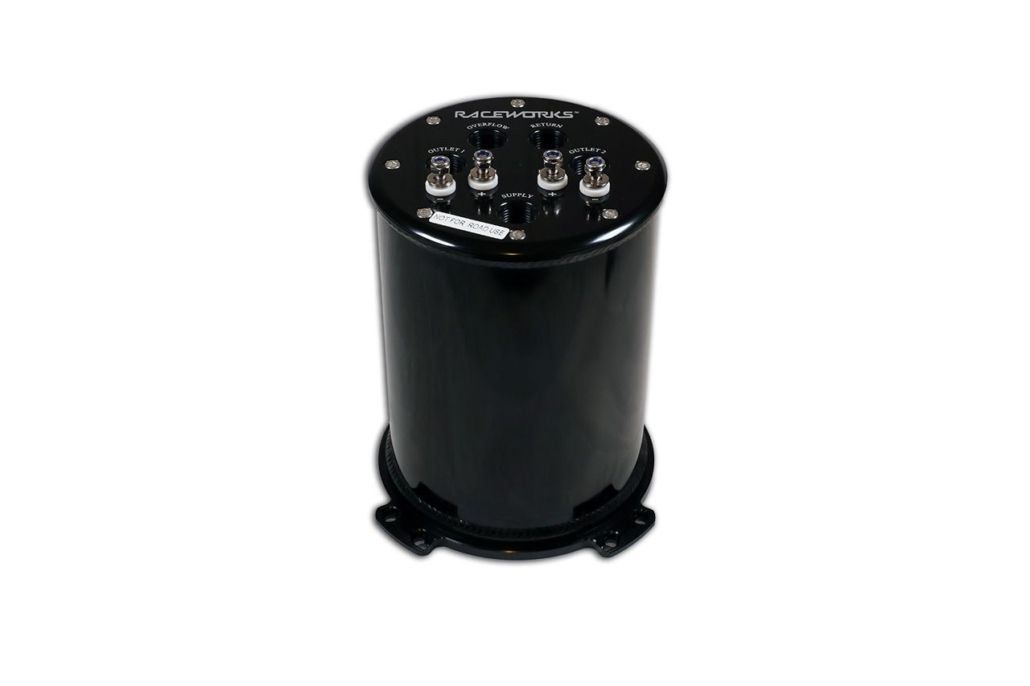

Raceworks Twin Pump Surge Tank 2.8L ALY-083BK

Description

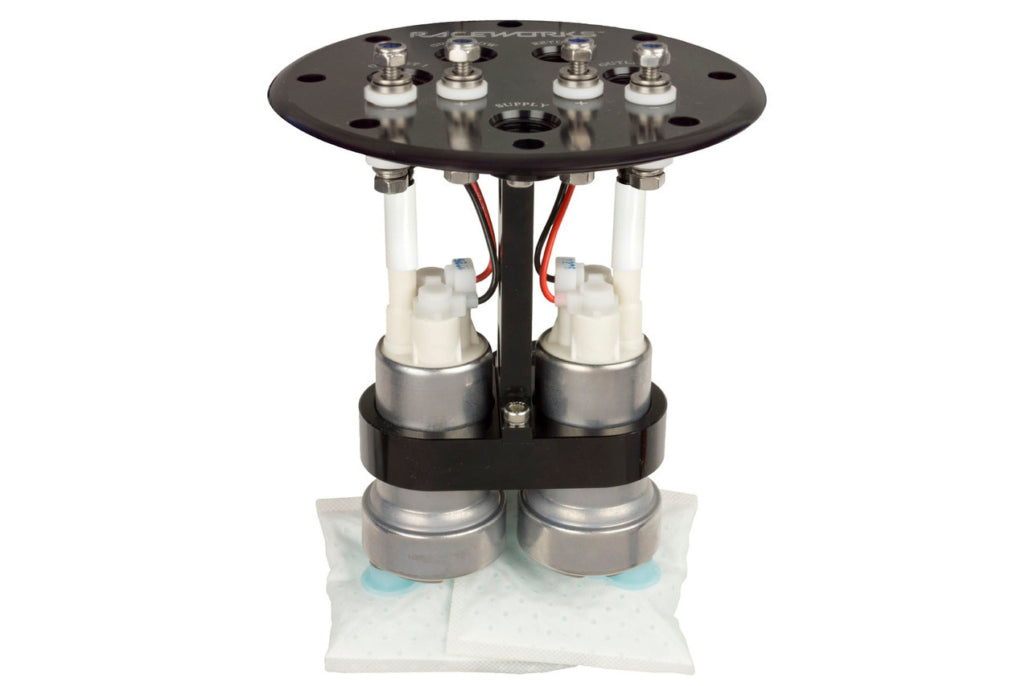

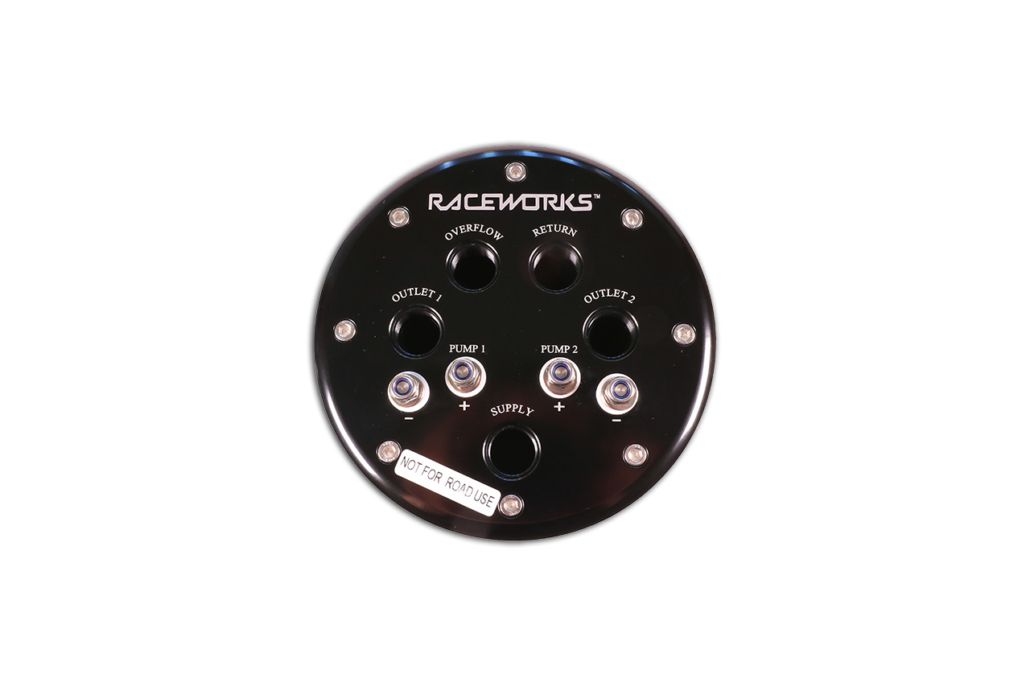

Raceworks 2.8 litre twin pump surge tank.  This surge tank runs dual in tank pumps for a neat, quiet installation. Anodised black, this alloy surge tank can be fitted with one or two pumps, and has dual stainless electrical terminals allowing the pumps to be staged separately.

Specifications:

• E85 ready with Teflon seals, Viton O-Rings, and Teflon in-tank hose
• AN-8 O-Ring Ports, Suits up to 150 degree fittings.
• 2.8L Capacity when used with a single pump, or 2.6L capacity when used with twin pumps
• Height 225mm, Width 195mm, Depth 195mm
• Suits 39-40mm pumps


Fuel Pump Compatibility List:

• EFP-500
• Walbro GSS340
• Walbro GSS341
• Walbro GSS342
• Walbro 400 F90000262
• Walbro 460 F90000267
• Walbro 460 HP F90000274
• Walbro 525
• Walbro 540

Manufacturer Part Number: ALY-083BK

Raceworks 2.8L Twin Pump Surge Tank ALY-083BK delivers a clean, quiet fuel system upgrade for high-performance applications. This anodised black alloy surge tank accommodates dual in-tank pumps with independent staging via dual stainless electrical terminals, or runs a single pump configuration. Built for serious fuel demands, it features E85 compatibility with Teflon seals, Viton O-Rings, and Teflon in-tank hose. AN-8 O-Ring ports support up to 150-degree fittings for flexible installation. Capacity reaches 2.8L with single pump setup or 2.6L with twin pumps. Dimensions: 225mm H × 195mm W × 195mm D. Suits 39-40mm pump sizes including Walbro GSS340, GSS341, GSS342, 400, 460, 460 HP, 525, 540
