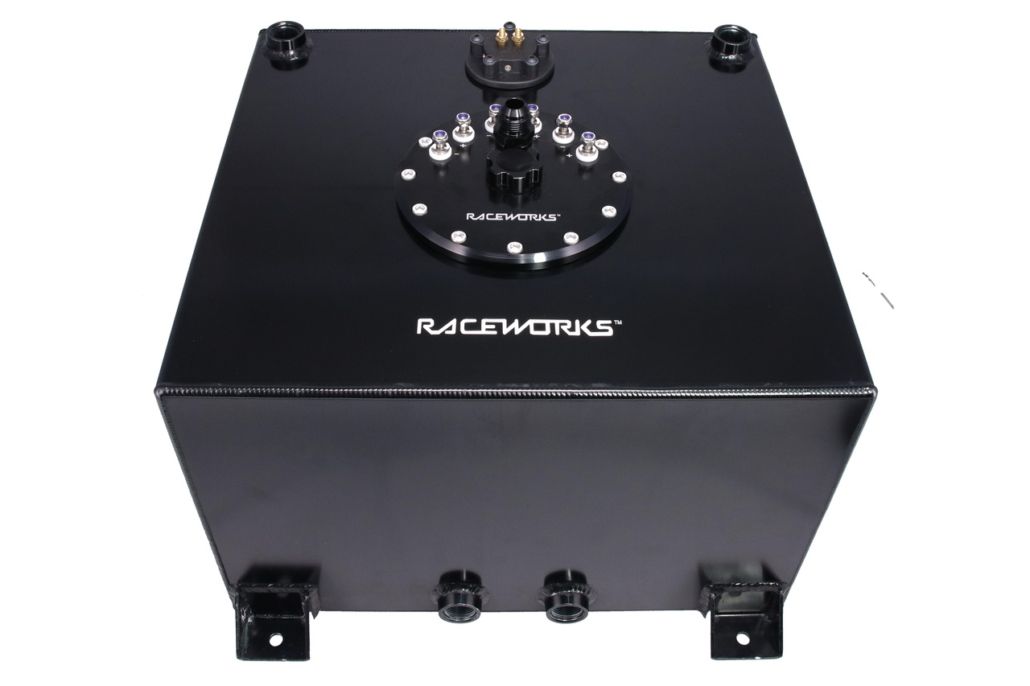

Raceworks Fuel Cell Sumped With Internal Baffles 15 Gallon 57L

DESCRIPTION

Raceworks Fuel Cell Sumped With Internal Baffles 15 Gallon (57L).

Please note though with ALY273BK that it does not come with a filler

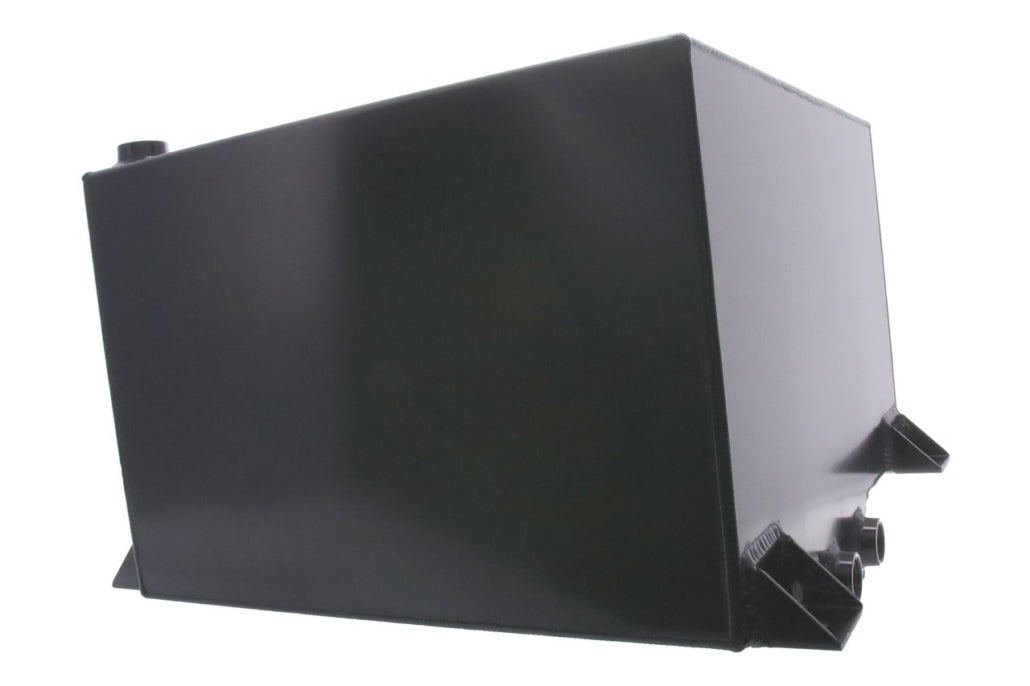

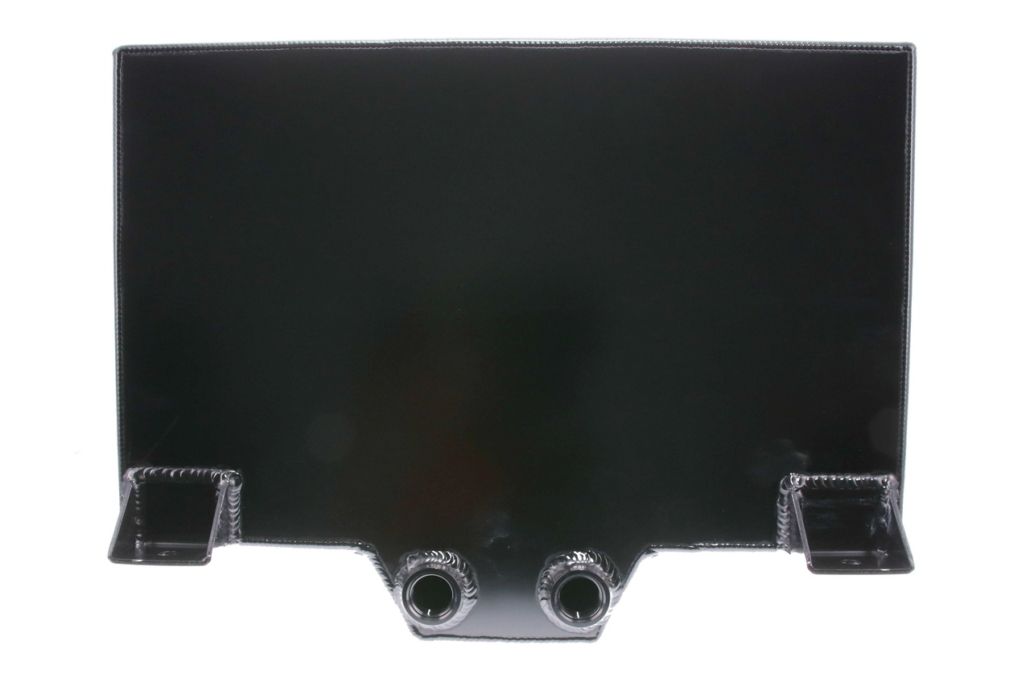

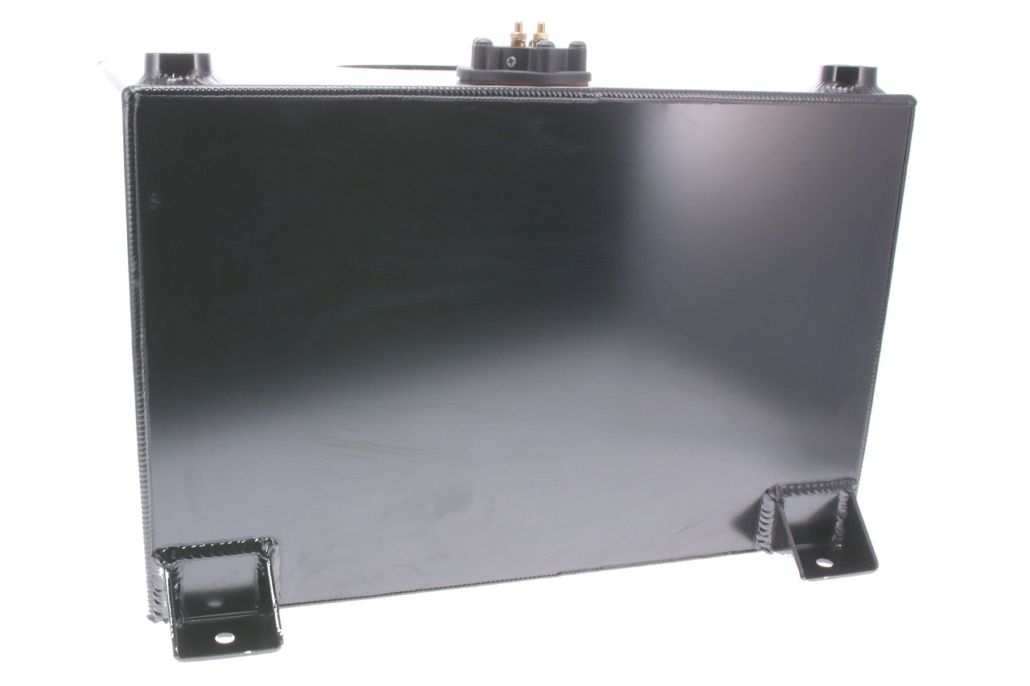

Raceworks Fuel Cells are engineered for extreme racing and performance demands. This 15 Gallon (57L) Sumped model features seamless robot welding from 5052 aluminium with aluminium internal baffles that prevent fuel slosh and starvation during aggressive lateral loads. The integrated 0-90 Ohm fuel sender is E85 safe, while black anodising inside and out ensures durability and corrosion resistance. Built for reliable fuel delivery when it matters most at the track. Dimensions: 510mm W × 460mm D × 260mm H. Four AN-10 ports. Includes 2-year warranty. Note: ALY-273BK does not include a filler cap—purchase ALY-278BK or ALY-195BK separately.

Please note though with ALY273BK that it does not come with a filler, you will need ALY-278BK or ALY-195BK

ALY-278BK: https://www.lowspeed.com.au/products/raceworks-billet-aluminium-flush-fuel-cell-cap-black

ALY-195BK : https://www.lowspeed.com.au/products/raceworks-fuel-cell-single-twin-triple-fuel-pump-hanger-with-filler

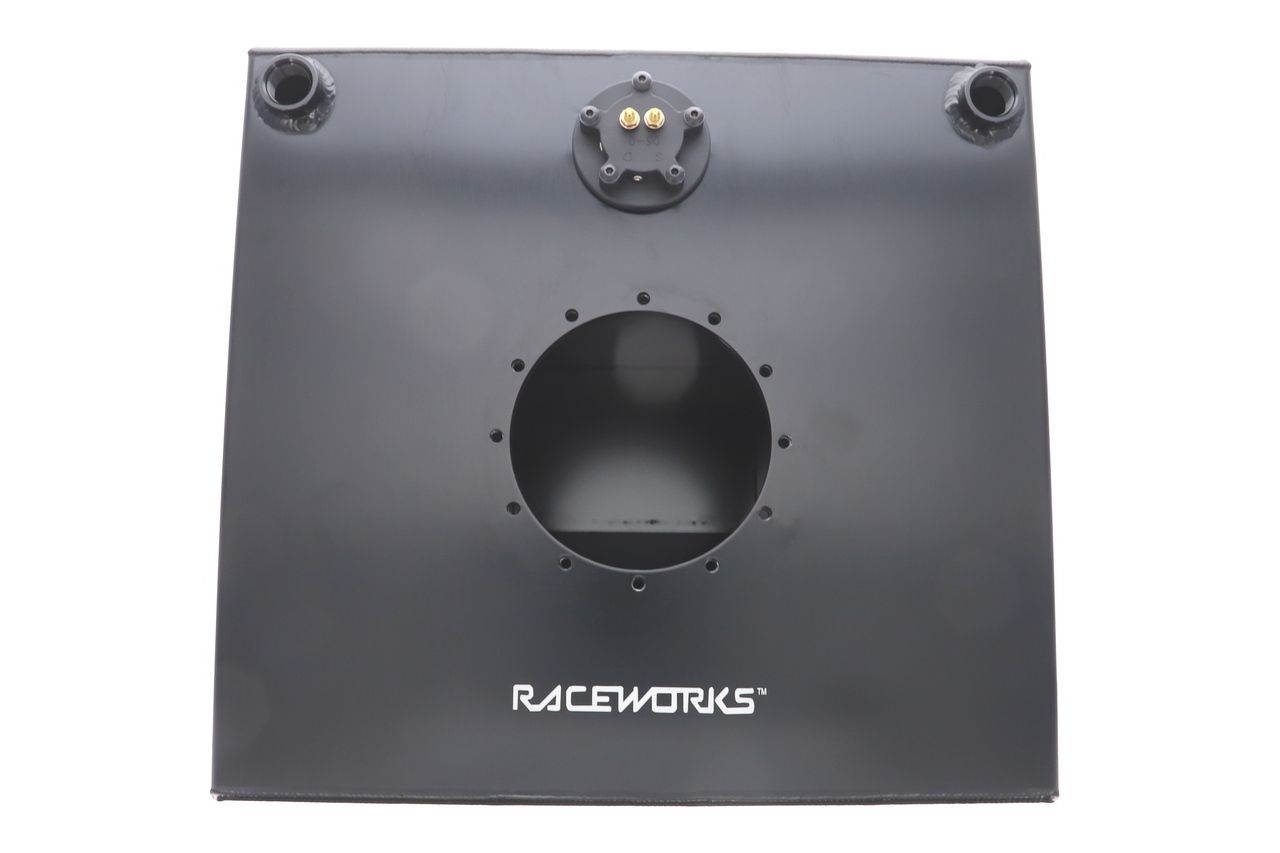

This Raceworks V2 Fuel Cell features a 12×140mm filler bolt pattern, upgraded from the previous 12×120.5mm design to accommodate larger accessories like the ALY-195BK Triple Pump Hanger. If you're using older V1 accessories, the ALY-104BK adapter plate allows compatibility with this new V2 fuel cell range. Note: V2 accessories are not backward compatible with V1 fuel cells.

Specifications:

• Volume: 57L (15 Gallons)
• Type: Sumped
• Dimensions: Width 510mm, Depth 460mm*, Height: 260mm*
• Ports: 4x AN-10

All Raceworks products come with a 2 year warranty.

Manufacturer Part Number: ALY-273BK
